Wunderlich - Ultimate Supplementary Bars For Gs Adv Tank Protection Bar (#13216)

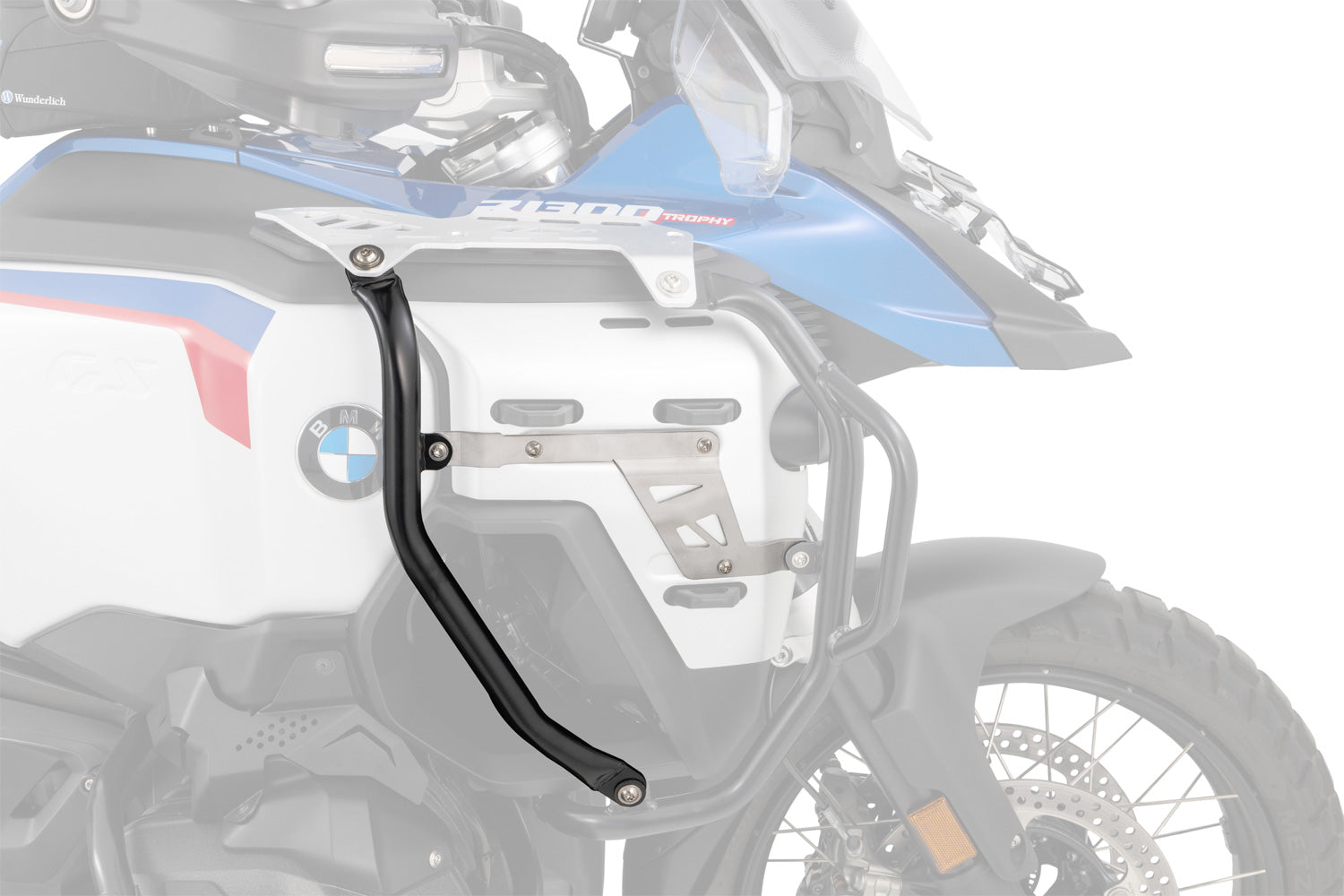

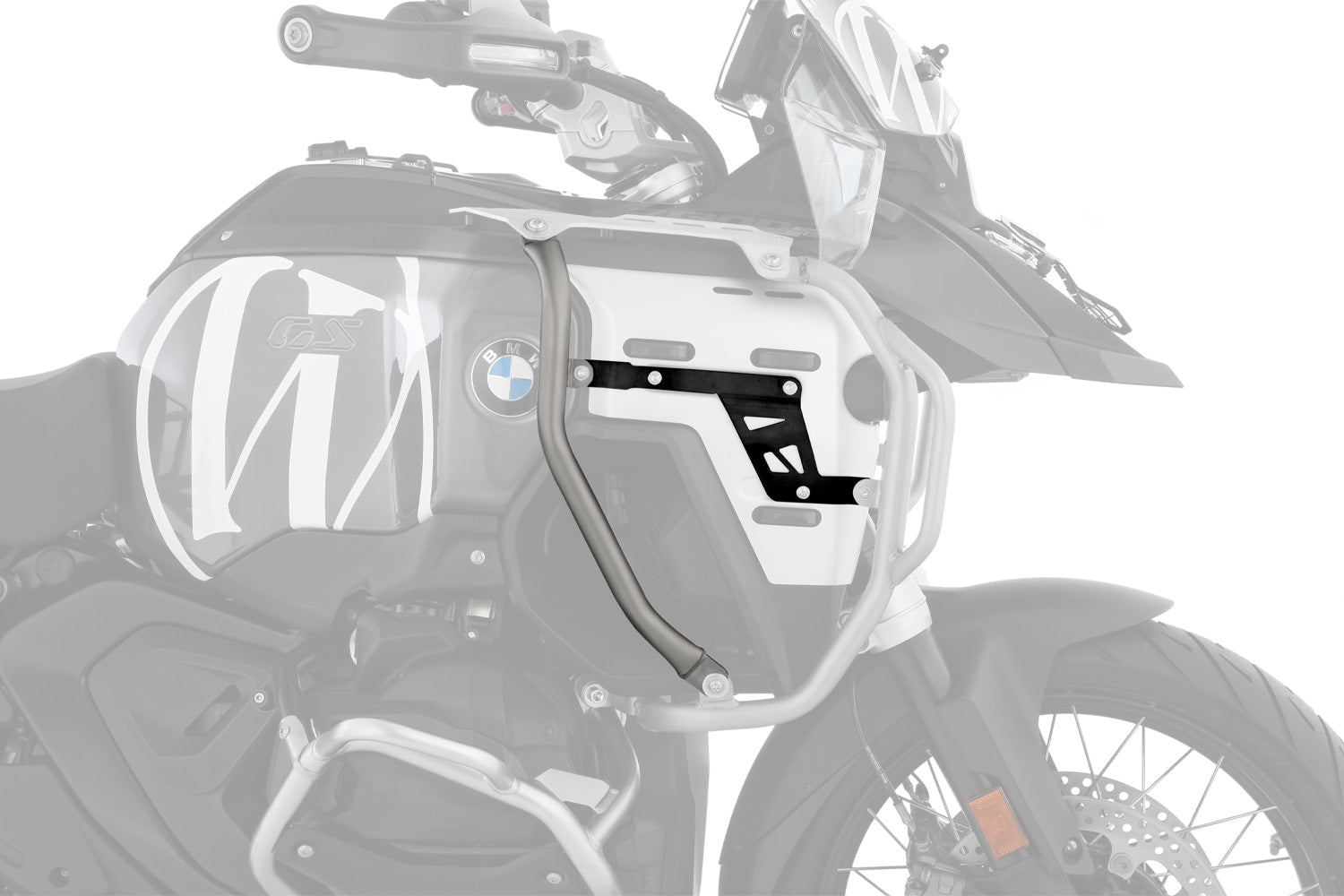

The Wunderlich ULTIMATE Plus Supplementary Bars complement the ULTIMATE Tank Protection Bar and provide a seamlessly integrated layer of extra protection for the flanks of the BMW R 1300 GS Adventure

Features

• These ULTIMATE Plus supplementary bars complement the ULTIMATE Tank Protection Bar #13215-003 and provide additional protection for the flanks of the Adventure
• They serve as connecting elements between the RackBase and the lower tubular arms – enhancing the overall rigidity of the tube structure
• The acting forces and torques are distributed to two additional mounting points on both the right and left sides
• The shape of the supplementary bars further contributes to the flexible absorption of sudden load peaks
• This extra protection significantly enhances passive safety and reduces the risk of leg injury to the rider in the event of a fall
• Perfect fit
• Integrated one-piece solution
• Simple and quick installation

Note

The side bracket included with the supplementary bar set replaces the side bracket of the tank protection bar. It connects the tank protection bar with the supplementary bar and serves as a common lateral mount for both components.

Technical Specifications

• Material
• Protection Bar
• Precision stainless steel tubing with high tensile strength and elongation, carefully handcrafted, bends precisely formed on CNC tube bending machines and cleanly welded. The stainless steel surface is finely finished, glass bead-blasted and finally electropolished
• Material
• Side Bracket
  Made from aluminium, carefully finished
• Black powder-coated
• Dimensions
• Tubing diameter: 25 millimetres
• Colour
• Protection bar structure in stainless steel, side bracket black powder-coated – bicolour
