Wunderlich - Quick Connect Wiring Harness For Auxiliary Socket for BMW C 600 Sport (-2015)

Wunderlich QUICK CONNECT Cable Set for Safe Power Supply of Navigation & Smart Media in the Cockpit

Function and Product Features

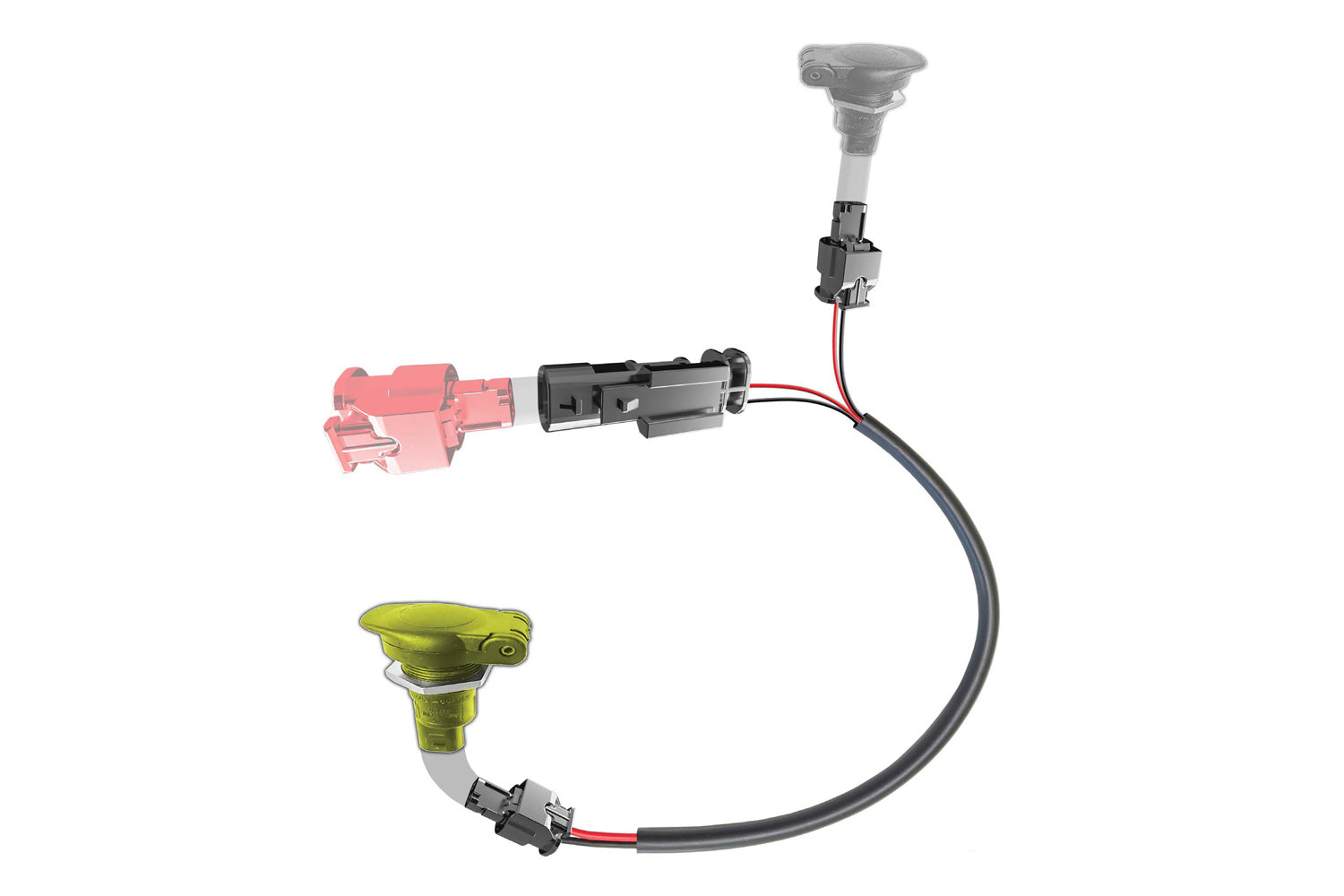

• QUICK CONNECT: Professionally assembled Y-splitter cable with three fully pre-configured connectors:
• An original connector for linking to the vehicle’s onboard power supply: This professional wiring harness is plugged in via Plug & Play using the pre-configured connector at the original BMW onboard power connection, replacing the existing DIN or USB socket, and is smartly integrated into the vehicle's power supply
• Two connections (fused via the onboard network with 5 A) suitable for:
• Original BMW DIN or USB sockets
• Or even better: two Wunderlich USB dual sockets (#45011-200) with a total of four USB charging ports(!)

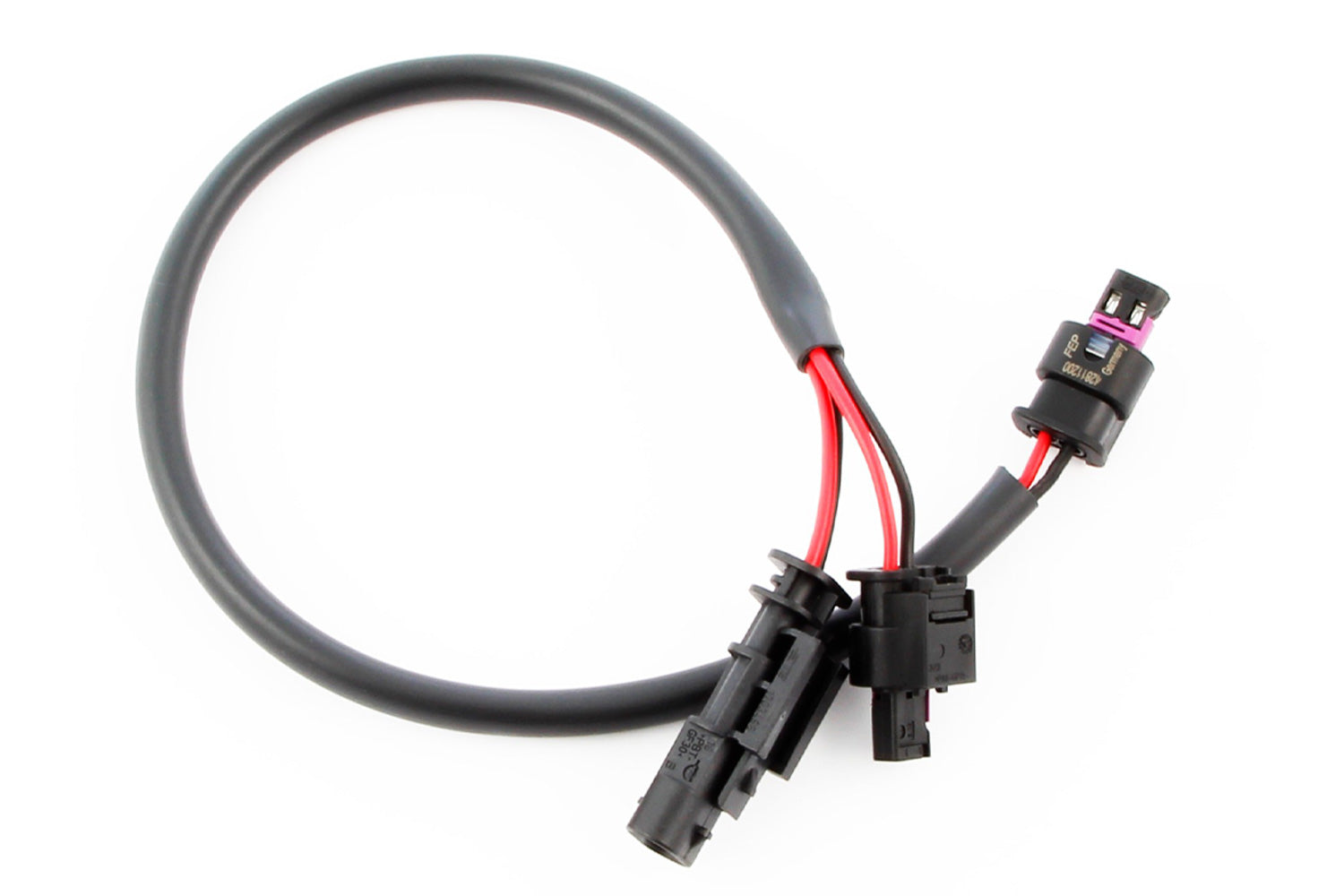

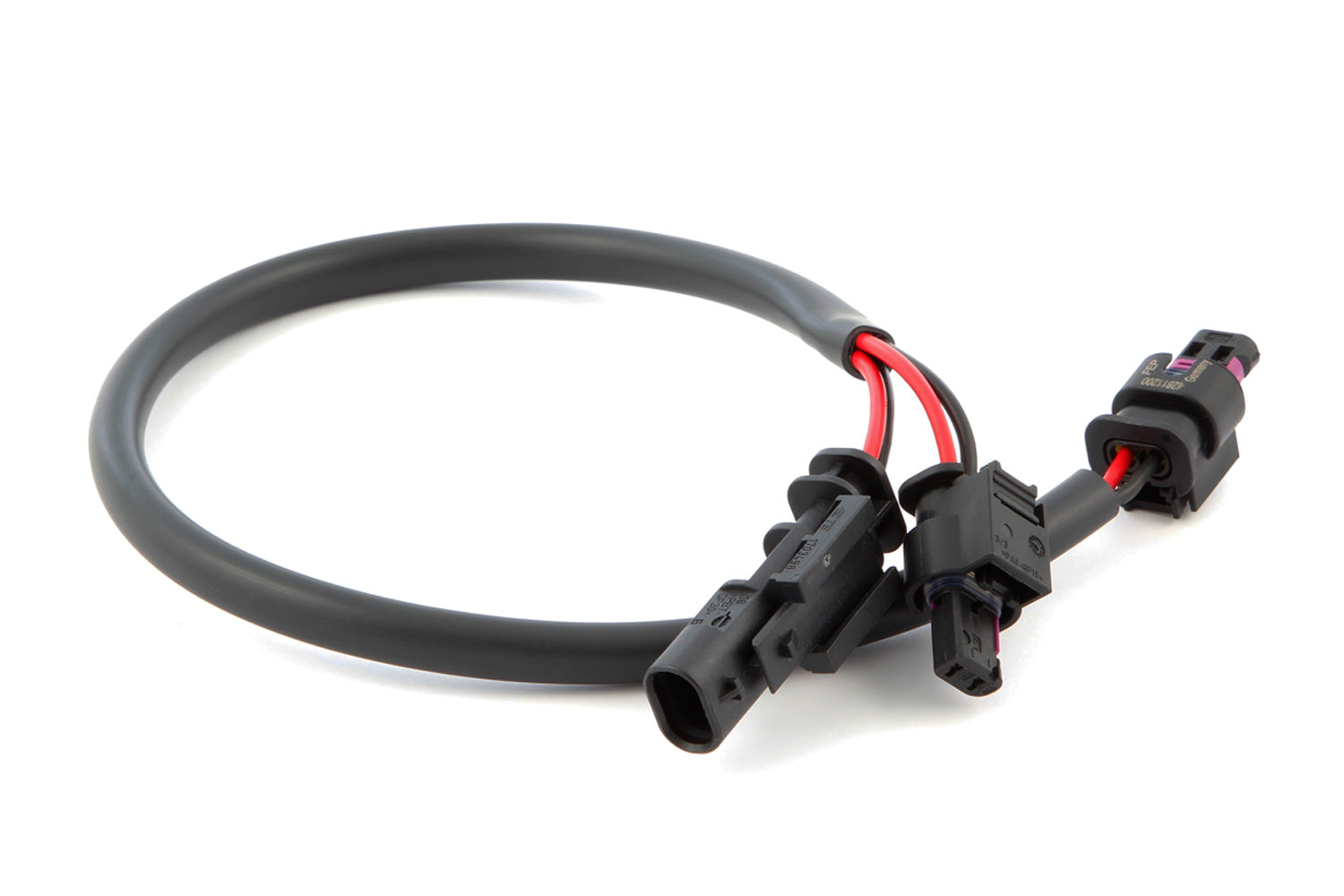

• Professionally assembled cable with three pre-finished connectors:
• An original connector for connection to the on-board network
• Two original connectors for powering two sockets
• Plug & play installation for convenient, safe power supply for your navigation or other devices in the cockpit - instead of additional cable clutter when routing cables between the battery and cockpit
• When the ignition is turned off, the power supply to the connected devices is automatically interrupted, so the battery cannot drain unnoticed
• The power supply is secured via the on-board network, so no additional fuse is needed
• The load capacity via the on-board network is a maximum of 5 A (including the possible consumers at the sockets)
• Important advantage: Other USB or DIN sockets remain free for other consumers

Note and Recommendation

• Turn one into four: With the QUICK CONNECT wiring harness and two Wunderlich USB dual sockets USB/USB-C (#45011-200), you can effortlessly turn a single existing original socket into four USB charging ports!

Technical Data

• Dimensions
• Length of the QUICK CONNECT cable set 390 mm
• Electrical Protection
• Max. 5 A including the possible consumers at the sockets

Your Wunderlich Advantages

• Wunderlich product. Small series. Handmade.
• Functional and integrated.
• Made by Wunderlich
• Made in Germany

Wunderlich QUICK CONNECT: Pre-configured. Secured. And comfortably installed.

When using a navigation system or another device on a motorcycle, the question arises of how to achieve permanent power supply. One can, of course, route a cable directly from the battery to the cockpit area, but this is laborious and time-consuming. Additionally, this type of power supply must be secured by a fuse. Furthermore, the battery will quickly drain if you forget to turn off the device after switching off the ignition.

Our QUICK CONNECT wiring harness provides a professional, safe solution. It is connected via Plug & Play using pre-configured connectors at the original BMW onboard power connection, replacing the existing DIN or USB socket, and is smartly integrated into the vehicle’s power supply. Once installed, for example, two Wunderlich USB dual sockets (#45011-200) with a total of four charging ports, or the original BMW onboard socket (DIN or USB) in combination with our dual socket, can be connected using the designated connectors of the QUICK CONNECT wiring harness. That’s it!

With this solution, the power supply to the two sockets is automatically interrupted when the motorcycle's ignition is turned off, so the battery cannot drain unnoticed. The protection (max. 5 A) is provided by the on-board network. And, the other DIN and USB sockets remain free for the use of other consumers!
