RamMount - RAM-B-176-A-UN7U Bolted Mount-RAM-B-176-A-UN7U

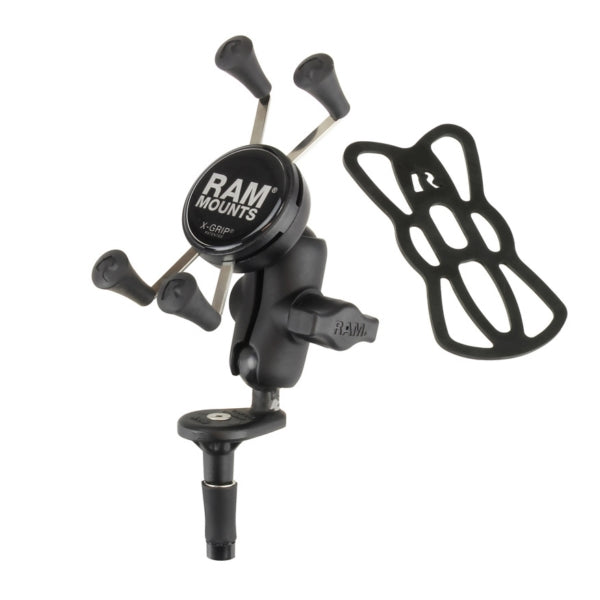

The RAM-B-176-A-UN7U consists of a fork stem base, short double socket arm and universal X-Grip® cradle. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone.

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Cradle Dimensions:

• Minimum Width = 1.875" (Minimum Height = 4.25")
• Maximum Width = 3.25" (Minimum Height = 2.25")
• Depth = 0.875"

*This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 -20mm and 28mm or .5” - 1.10” at the following intervals

• Material: Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

• Ball Size: 1" Rubber Ball "B" Size

Note: Certain motorcycles require adding electrical tape to the area of the plug that is the largest diameter until it fits snugly in the stem. The "U" in the part number reflects product packaged in poly bag. RAM recommends that you review the installation instructions for this part prior to ordering. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
