HO 047
*Limited Time Sale - Discount Applied in Cart* Based on the well proven and high performing STX 36 shocks, we now offer a performance and ride upgrade to scooters.
This sporty and dynamic bike is not only for commuting but also a bike you can really have fun with!
Öhlins suspension will improve your experience giving you better traction, comfort, and control over the bike.
Type Code: S36HR1C1
Tech
- Adjustable Rebound and Compression damping
- Monotube Shock with External Hose mounted Reservoir
- High Pressure Nitrogen Gas Charged
- STX Single Tube design
- 36mm Piston Diameter
- Adjustable Preload w/ tool
- Top Level Comfort, Rideability, and Performance
- Hard Anodized - Precision CNC-Machined Components
- Low-friction Shaft / Seal Head design
- Fully Serviceable and Repairable
Spec. by Application for HO 047
Application: 2020-2023 Honda MSX 125 (Grom)
Notes: Extra optional spring in box 66514-140 (140 N/mm)
Length: 244 mm
Stroke: 43 mm
Spring Rate: 120 N/mm n/m
Fitted Spring: 66514-120
Mounting Position: Rear Mono
Type code: S36HR1C1
Product Family: STX 36 Scooter
Application: 2022-2023 Honda MSX 125 (USA-Grom RR)
Notes: Optional spring 66514-140 (140 N/mm)
Length: 244 mm
Stroke: 47 mm
Spring Rate: 120 N/mm n/m
Fitted Spring: 66514-120
Mounting Position: Rear Mono
Type code: S36HR1C1
Product Family: STX 36 Scooter
Fitment
Fitment
This item may fit other vehicles not listed here.| Honda | MSX 125 (Grom) | 2020-2023 |
| Honda | MSX 125 (USA-Grom RR) | 2022-2023 |
Documents
ÖHLINS Supporting Documents

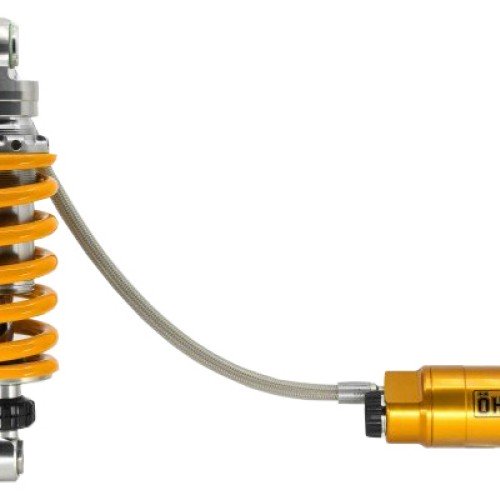

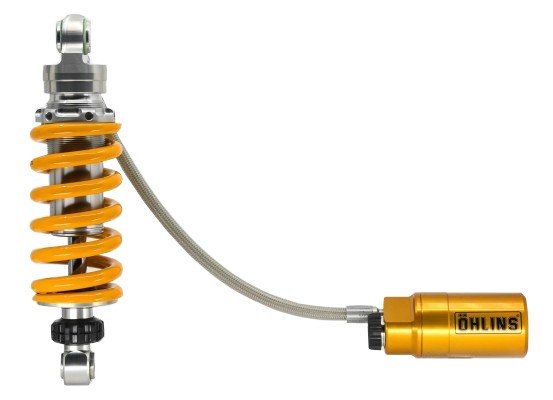

ÖHLINS - Mini S36 Shock (HO 047)
