KimpexHD - Lighting Stator & Voltage Regulator Kit (SF-900-006772)

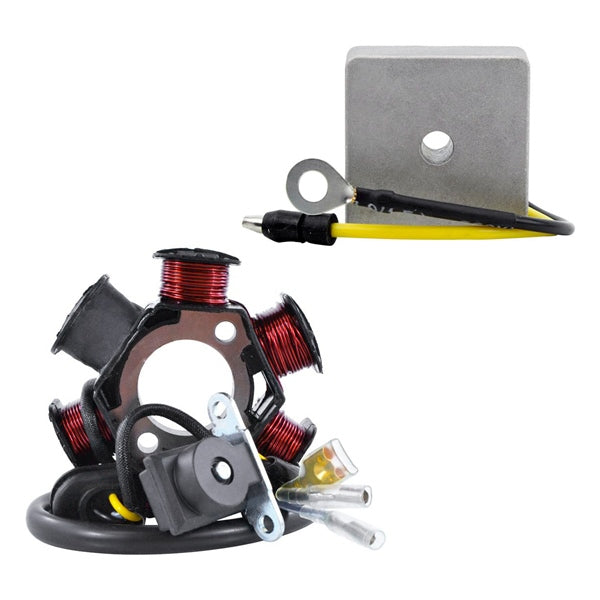

Kit Lighting Stator + AC Voltage Regulator Rectifier

All products shipped are tested

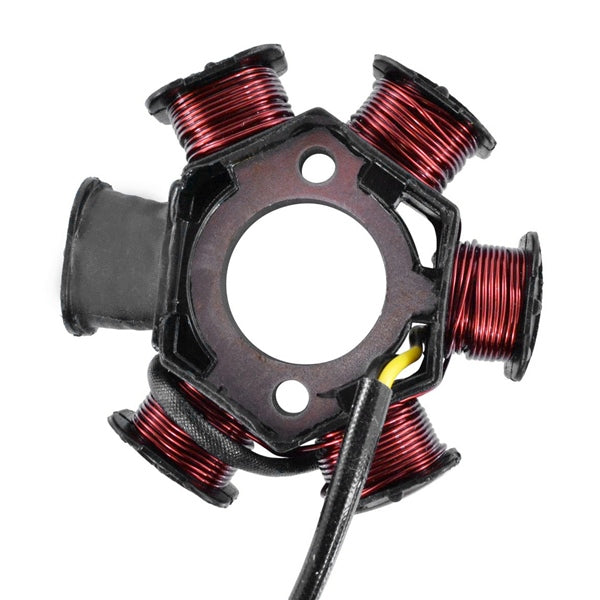

Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Rubber grommet included

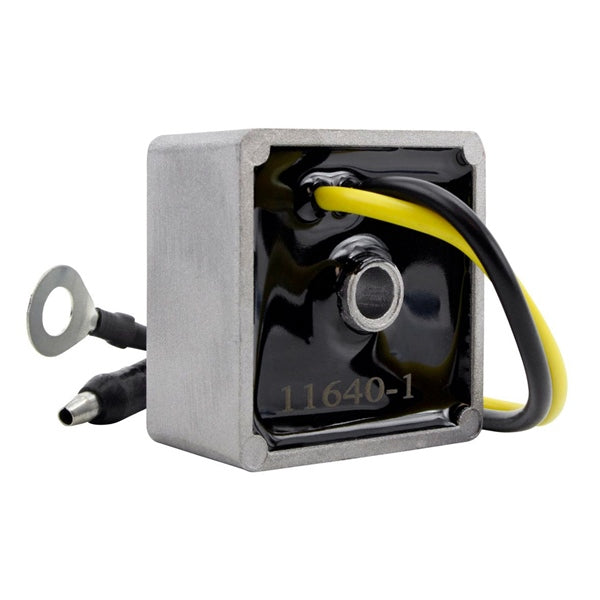

Heavy Duty AC Voltage Regulator Rectifier

• 12 Volts regulator used by Baja winners
• Heavy duty and improved regulator rectifier
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM part
• Rated at 225 watts

Veuillez noter: The OEM stator did not include a lighting coil because no lights come on the bike. If you would like to add a headlight and/or taillight, our stator includes a 100 Watt lighting coil between the Yellow wire and ground. The Black wire from the regulator needs to be grounded to the frame, and the Yellow wire is connected to the Yellow wire from the stator and also to your lights (the other side of your lights are grounded to the frame to complete the circuit). A new regulator must be used to support the lighting..

Veuillez noter: the body is different than the OEM (fix it with only one screw instead of two), but it works on the same models.

Veuillez noter: this regulator has two wires, yellow to power and black to ground.
