BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)

Roll over image to zoom in Click on image to zoom

BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)

BRPSKU: BRP-DS-902406-3529 Barcode: 202564728338

Damper: Complete kit with a damper

Select Your Bike: Husqvarna 701 / KTM 690

Variant

Price:

$1,621.49 CAD

Stock:

Out. Available for Pre-Order
Expect delay.

Quantity:

For Out-of-Stock products that include a steering damper:

Due to high demand and production delays for Scotts Steering Dampers, shipping of your order may be delayed if it includes a damper. We receive weekly shipments from Scotts and process orders in the order they are received. Thank you for your understanding!

The BRP rubber-mounted SUB "Scotts Under Bar" adapter uses (8) polyurethane bushings to isolate vibration and reduce rider fatigue by softening the harshness of hitting square edge rocks and obstacles. Now available with two different durometer bushings to fine tune the amount of vibration dampening.

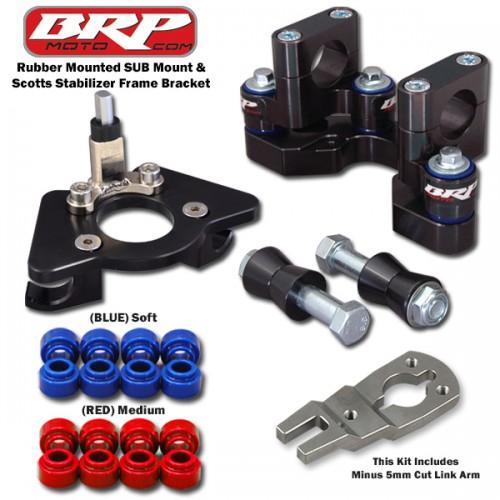

Mount-only kit includes (DM-SUB-3529-01R or BRP-DM-902406-3529):

BRP rubber-mounted SUB adapter
Sets of rubber bushings (red = medium, blue = soft)
Aluminum cones & all necessary hardware
Scotts frame bracket
Damper link arm (Stepped Standard -5mm) (LNK-4032-35)

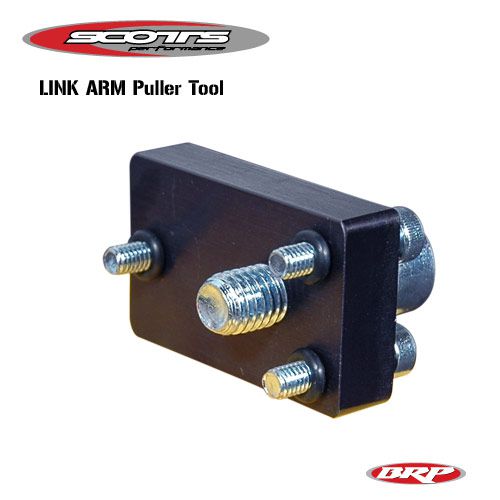

Damper arm removal tool

Complete kit includes (DS-SUB-3529-01R or BRP-DS-902406-3529):

Everything in the mount kit except for the arm removal tool
One Scotts stabilizer with the link arm installed on it.

Fitment

2016+ Husqvarna 701
2019+ KTM 690 Enduro

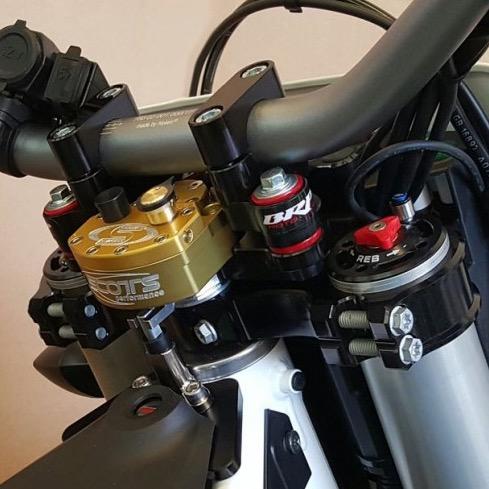

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP rubber-mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3, the most common and popular position. SUB mounting a stabilizer offers several benefits over a conventional "above bar" setup and is becoming a very popular setup for GPs, motocross, off-road, dual sport and for riders of a taller stature.

This kit raises the handlebars 15mm taller than stock and puts the bars at 21mm in front of the steering stem (which is the stock bar position)
Lower bend bars can be used to compensate for additional height
SUB mounting reduces the risk of bodily injury
Stabilizer is tucked away and protected from potential damage from a crash

IMPORTANT NOTE: This kit does NOT fit KTM 690 2018 and older. There is a different kit available for those models.
