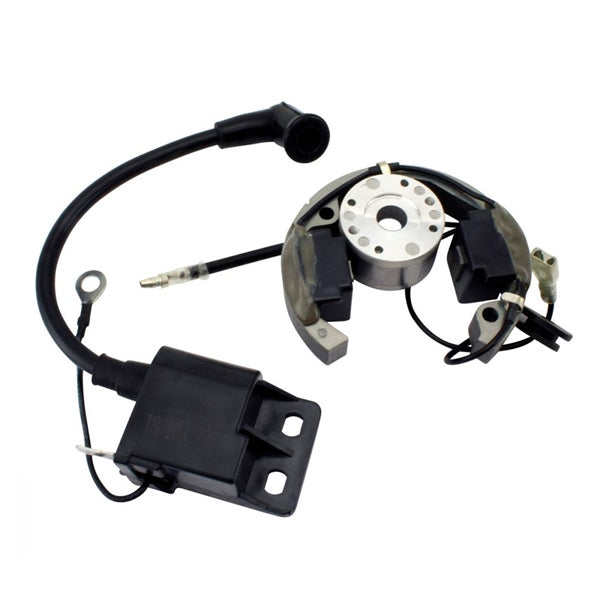

KimpexHD - Stator, Rotor and Ignition Coil Kit (SF-900-004047)

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

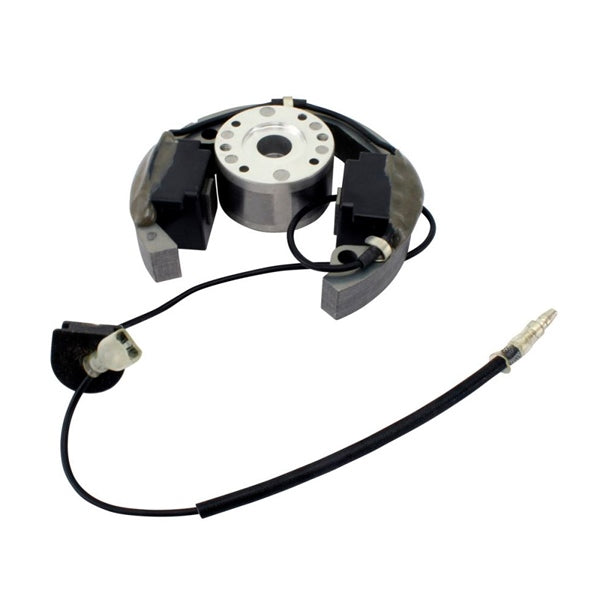

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part. Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

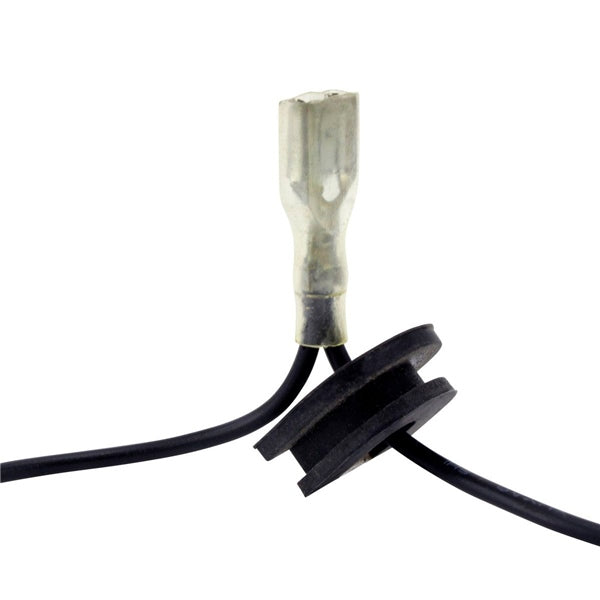

• Rubber grommet included

SPÉCIFICATIONS Stator Dimensions: Length of wires stator to grommet : 75 mm Length of wires grommet to plug : 148 mm Other specifications: Number of wires : 2 Number of plugs : 2 Alternator : Black to ground = 4.5 ohms +-20% External Ignition Coil: Distance between fixation holes: 20 mm Wire Length: 51 mm Resistance: 6.1 ohms Rotor Dimensions: Interior widest diameter : 12 mm Interior narrowest diameter : 12 mm Interior length : 19 mm Exterior Diameter: 36 mm Fixation holes center to center: 23 mm
