Description

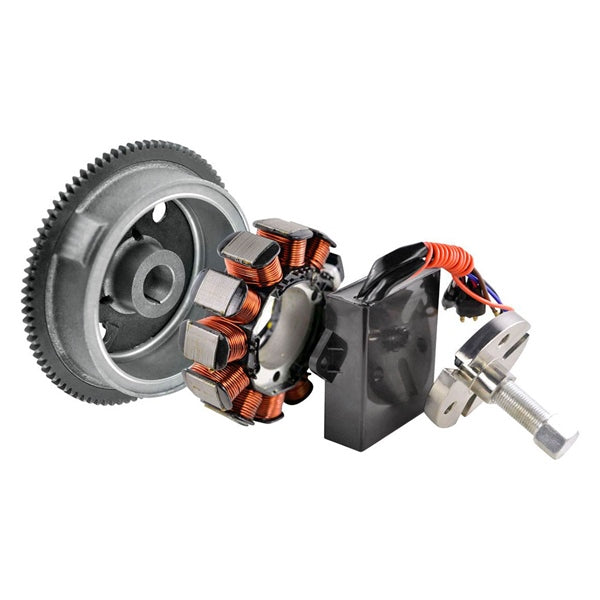

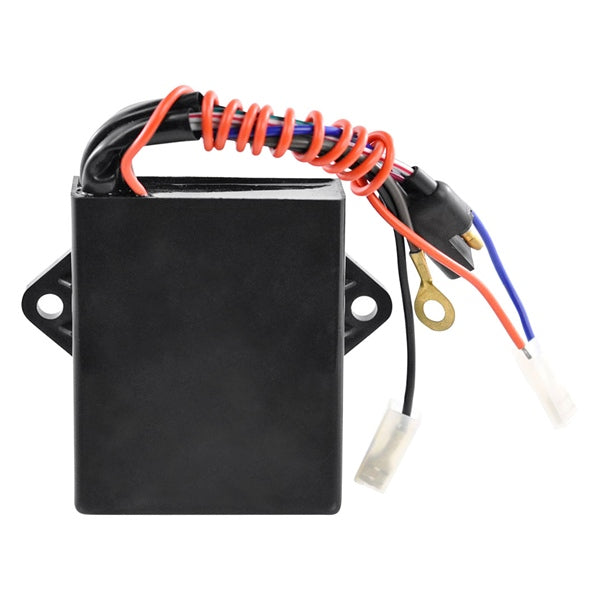

This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.

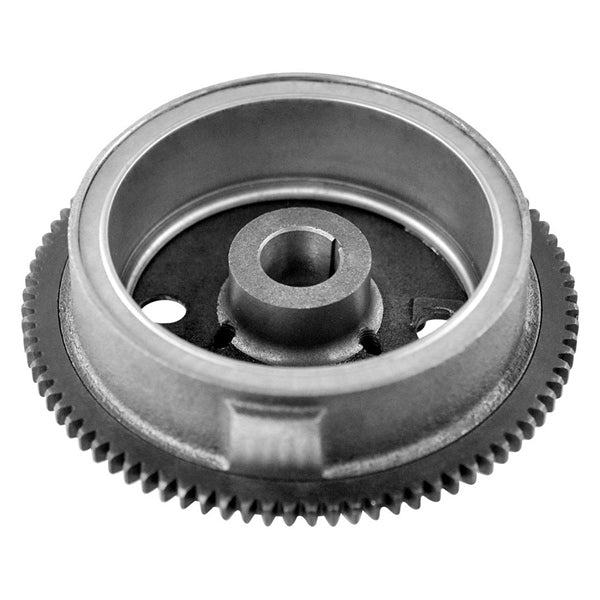

Flywheel
Dimensions:
Exterior Diameter: 141 mm Interior Diameter: 117 mm Interior Diameter Center Housing: 25 mm Exterior Diameter Center Housing: 23 mm

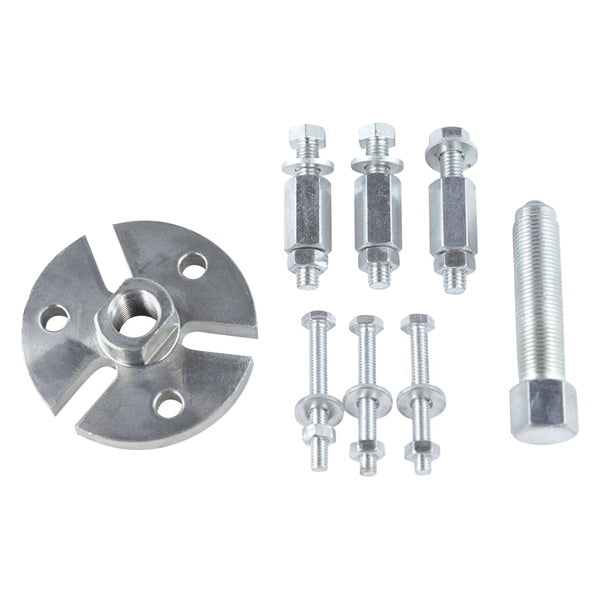

Flywheel Pullerr
Main Base Diameter: 105 mm (4.1``) Thickness: 12mm (0.5``)
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler

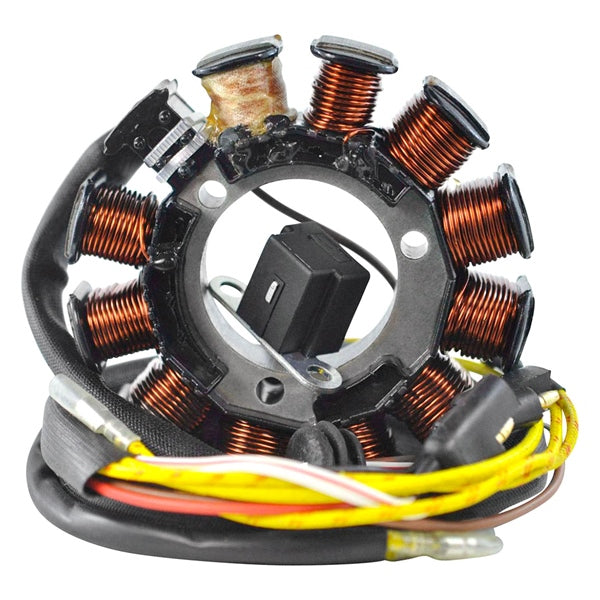

Generator Stator
Dimensions :
Interior diameter : 47 mm / 48mm Exterior diameter : 114 mm / 115mm Thickness : 20 mm Length of wires stator to grommet : 155 mm / 135mm Length of wires grommet to plug : 900 mm / 1200mm Length of pickup coil's wire to grommet : 60 mm / 120mm
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Interior diameter : 51 mm Exterior diameter : 114 mm Thickness : 20 mm
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
Flywheel
Dimensions:
Flywheel Pullerr
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler
Generator Stator
Dimensions :
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
KimpexHD - Stator, Flywheel, Puller, AC/DC Ignition Conversion Kit (SF-900-006550)
fits the following vehicles:
fits the following vehicles:
(SF-900-006550)
Available- Part number
- SF-900-006550
- SKU
- K-345072
- 779421882303
